NEXT LAUNCH:

    HIPP-26-30

    PRIMARY TARGET

    Testing & verifying LEO-class probe systems including:
    - Payload design
    - Power management with solar cells
    - Data logging & handling
    - Location determination
    - Communications and telemetry through TTN

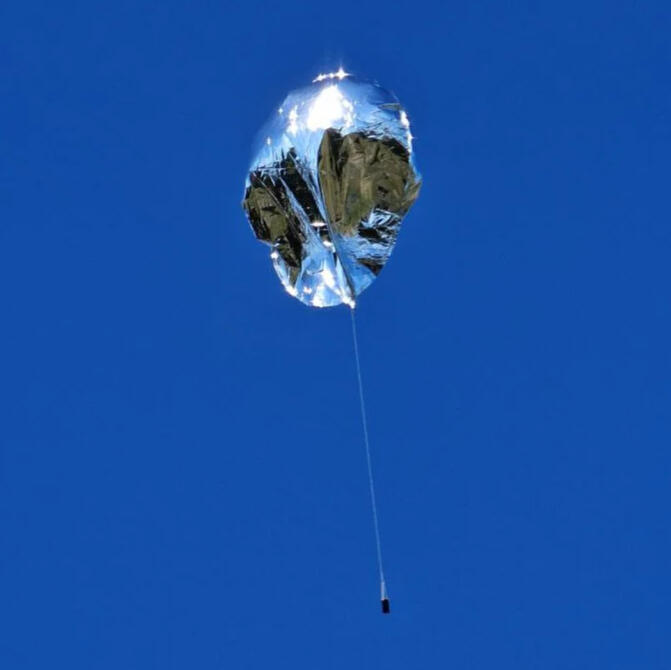

    - Alternative buoyancy systems
    SECONDARY TARGET
    - Producing high-quality imagery through advanced optical instrumentation

    Next Mission: 06-05-2023

    HIPP-26

    PRIMARY TARGET

    Testing flights for telemetry unit development

    PAYLOAD DESIGN

    TBD

    FORECAST

    Chance of favorable atmospheric conditions: 87%

    COMS

    Follow the mission live via our handle @suborbitaldx

    MISSION LOG:

    HIPP-20-25

    PRIMARY TARGET

    Classified testing flights for telemetry unit development

    COMS

    Follow upcoming missions live via our handle @suborbitaldx

    MISSION LOG: 4-9-2021

    HIPP-19

    PRIMARY TARGET

    Test LEO-class transmitter over ThingsNetwork. Gain video of parachute deployment and send worlds first ham to edge of space.

    PAYLOAD DESIGN

    - Live Feed Downlink: SX127x @433 MHz
    - Photonics Apparatus: Mobius Maxi
    - Spatial Awareness Device: XA1110
    - Telemetry Logger: ATSAMD21
    - Barometric Sensoring: BME280
    - Payload Recovery System: TRATR1

    MISSION: PARTIAL SUCCESS

    Received continuous data stream from over 100 km away at Tallinn ground station. Video capture didn't succeed due to possible battery freezing. High-altitude cured ham was delicious.

    MISSION LOG: 23-5-2021

    HIPP-18

    PRIMARY TARGET

    Receive first live photographs from the craft. Test Parachute Deployment System (PDS) further.

    PAYLOAD DESIGN

    - Live Feed Downlink: SX127x @433 MHz
    - Photonics Apparatus: Mobius Maxi
    - Spatial Awareness Device: XA1110
    - Telemetry Logger: ATSAMD21
    - Barometric Sensoring: BME280
    - Payload Recovery System: TRATR1

    MISSION: PARTIAL SUCCESS

    Received first ever live photograph from the vessel and verified parachute deployment at 5 km altitude. Delaying the deployment will reduce the distance of glide after burst.

    MISSION LOG: 24-4-2021

    HIPP-17

    PRIMARY TARGET

    Undisclosed to the public.

    MISSION: SUCCESS

    MISSION LOG: 2021-3-13

    HIGH-ALTITUDE PARTICLE PROBE: FLIGHT 16

    PRIMARY TARGET

    Test Parachute Deployment System & 360 Camera

    PAYLOAD DESIGN

    - Comms relay: RFM96 @433 MHz
    - Photonics Apparatus: 360 Sphere
    - Spatial Awareness Device: XA1110
    - Telemetry Logger: ATSAMD21
    - Barometric Sensoring: BME280
    - Payload Recovery System: TRATR1
    - Parachute Deployment System (PDS)

    MISSION: PARTIAL SUCCESS

    Telemetry was received after launch and photonics apparatus recorded flight until parachute deployment. However, deployment occurred in earlier stage than planned due to high angular momentum of the craft.

    COMS

    Follow the mission live via our handle @suborbitaldx

    MISSION LOG: 2021-1-16

    HIGH-ALTITUDE PARTICLE PROBE: FLIGHT 15

    PRIMARY TARGET

    Test & verify equipment and telemetry-relay in subzero hostile weather conditions

    PAYLOAD DESIGN

    - Comms relay: RFM96 @433 MHz
    - Photonics Apparatus: Mobius Maxi
    - Spatial Awareness Device: XA1110
    - Telemetry Logger: ATSAMD21
    - Barometric Sensoring: BME280
    - Payload Recovery System: TRATR1
    - Lift vehicle: Hwoyee 200g

    MISSION: PARTIAL SUCCESS

    Telemetry was received after launch, but during recovery mission signal was not re-established due to terrain obstructions. However, all flight data was logged and valid. Photonics apparatus had drop of voltage in battery cell due to low temperature in the capsule.Flight path visualisation available at AYVRI

    COMS

    Follow the missions live via our handle @suborbitaldx

    MISSION LOG: 2020-10-24

    HIGH-ALTITUDE PARTICLE PROBE: FLIGHT 14

    PRIMARY TARGET

    Test & verify equipment and telemetry-relay for upcoming ultra-high flight.

    PAYLOAD DESIGN

    - Cosmic Ray Detector: OV2640
    - Photonics Apparatus: Mobius Maxi
    - Spatial Awareness Apparatus: XA1110
    - Telemetry Logger: ATSAMD21
    - Barometric Sensoring: BME280
    - Payload Recovery System: TRATR1
    - Lift vehicle: Hwoyee 200g

    MISSION: SUCCESFUL

    Achieved continuous telemetry link via LoRa from lauch to landing.

    COMS

    Follow the missions live via our handle @suborbitaldx

    MISSION LOG: 2020-09-26

    HIGH-ALTITUDE PARTICLE PROBE: FLIGHT 13

    PRIMARY TARGET

    Test & verify equipment and telemetry-relay for upcoming ultra-high flight.

    PAYLOAD DESIGN

    - Cosmic Ray Detector: OV2640
    - Photonics Apparatus: Mobius Maxi
    - Spatial Awareness Apparatus: XA1110
    - Telemetry Logger: ATSAMD21
    - Barometric Sensoring: BME280
    - Payload Recovery System: TRATR1
    - Lift vehicle: Hwoyee 200g

    MISSION: SUCCESFUL

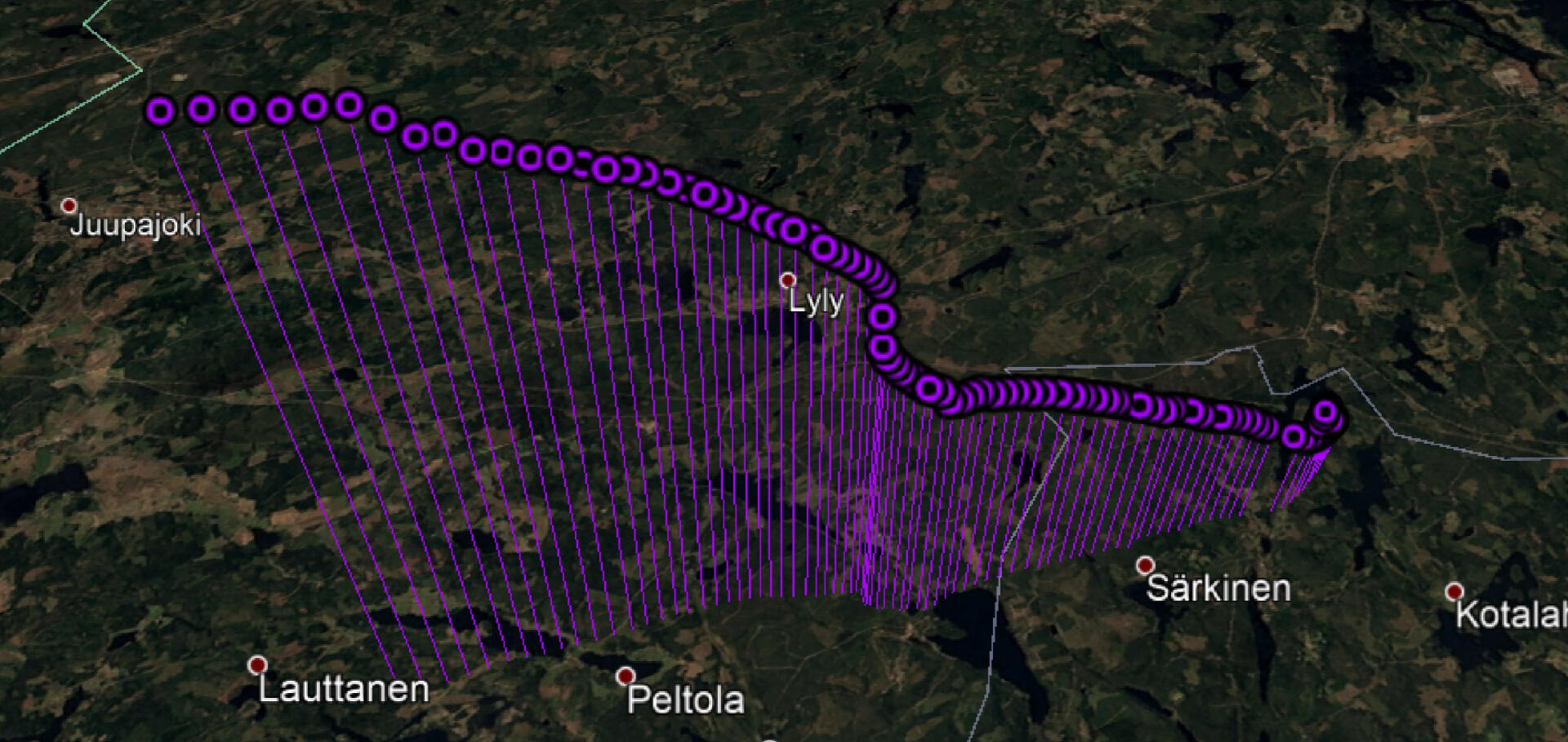

    Uninterrupted radio communication achieved and maintained during flight. LOS at 400 m above sea line. Tacking visualization done with Arcgis. Max distance to probe 88 km.

    COMS

    Follow the missions live via our handle @suborbitaldx

    MISSION LOG: 2020-08-15

    HIGH-ALTITUDE PARTICLE PROBE: FLIGHT 12

    PRIMARY TARGET

    Test & verify equipment and telemetry-relay for upcoming ultra-high flight.

    PAYLOAD DESIGN

    - Cosmic Ray Detector: HIPP-CRD-808x16
    - Photonics Apparatus: Mobius Maxi
    - Spatial Awareness Apparatus: XA1110
    - Telemetry Logger: ATSAMD21
    - Barometric Sensoring: BME280
    - Lift vehicle: Hwoyee 800g

    MISSION: SUCCESFUL

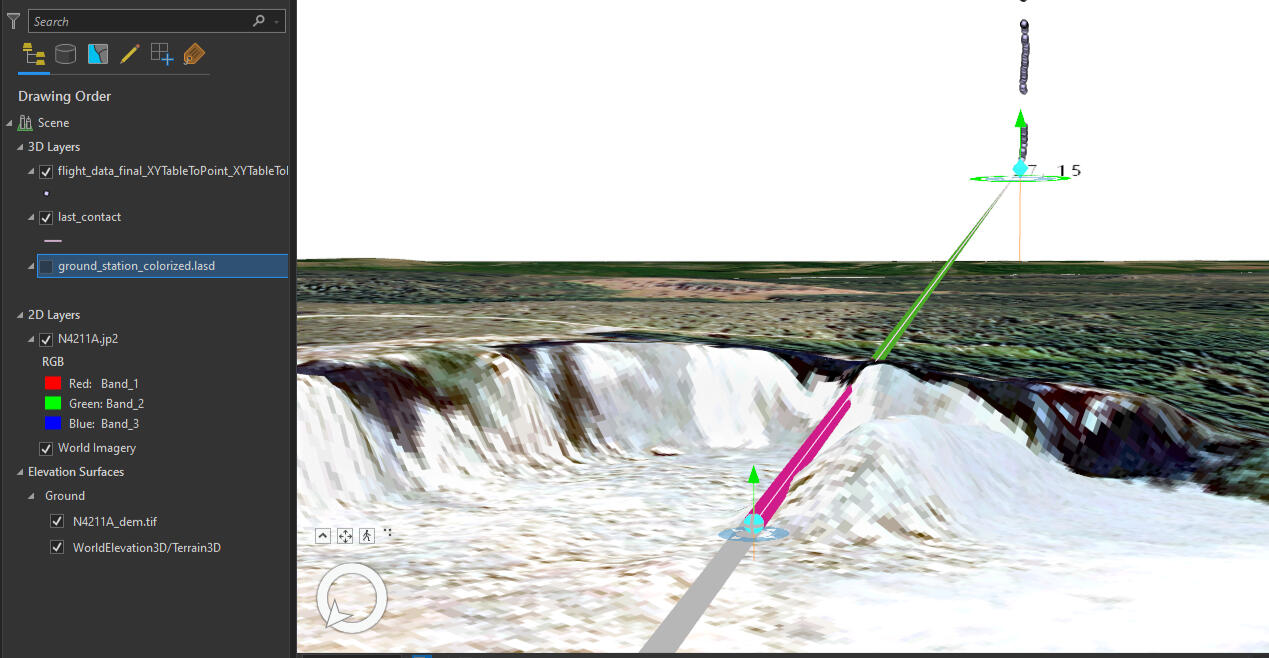

    Uninterrupted radio communication achieved and maintained during flight. LOS at 4000 m above sea level due to terrain obstruction. Maximum achieved height was 34 km. Continuous live flight path data was received and visualized with Arcgis.Flight path visualization available at AYVRI

    COMS

    Follow the missions live via our handle @suborbitaldx

    MISSION LOG: 2020-05-30

    HIGH-ALTITUDE PARTICLE PROBE: FLIGHT 11

    PRIMARY TARGET

    Uninterruptible 2-way radio communication with the mission payload to the apex of flight trajectory at height of 20km

    PAYLOAD DESIGN

    - Cosmic Ray Detector: HIPP-CRD-808x16
    - Photonics Apparatus: Mobius Maxi
    - Spatial Awareness Apparatus: XA1110
    - Telemetry Logger: ATSAMD21
    - Barometric Sensoring: BME280
    - Lift vehicle: Hwoyee 200g

    MISSION: SUCCESFUL

    Telemetry downlink achieved and maintained. Flight time 78 minutes, distance from launch pad to landing site ~50 km. Burst altitude 13 922 m.

    COMS

    Follow the missions live via our handle @suborbitaldx

    MISSION LOG: 2020-03-14

    HIGH-ALTITUDE PARTICLE PROBE: FLIGHT 10

    PRIMARY TARGET

    Testing data logger and lora-telemetry.

    PAYLOAD DESIGN

    - Comms relay: RFM96 @433 MHz
    - Photonics Apparatus: Mobius Maxi
    - Spatial Awareness Device: XA1110
    - Telemetry Logger: ATSAMD21
    - Barometric Sensoring: BME280
    - Payload Recovery System: TRATR1
    - Lift vehicle: Hwoyee 200g

    MISSION: SUCCESFUL

    Achieved telemetry feed from probe and got sweet video from photonics apparatus. Logger gathered altitude and temperature data during the whole flight. Max altitude bit over 20 km.

    COMS

    Follow the missions live via our handle @suborbitaldx

    MISSION LOG: 2019-11-16

    HIGH-ALTITUDE PARTICLE PROBE: FLIGHT 9

    PRIMARY TARGET

    Testing data logger in subzero weather conditions. Lift vehicle Hwoyee 800g.

    PAYLOAD DESIGN

    NONDICLOSED INFORMATION

    MISSION: SUCCESFUL

    Achieved telemetry feed from probe and got sweet video from photonics apparatus. Logger gathered altitude and temperature data during the whole flight. Max altitude 17 103 m.

    COMS

    Follow the missions live via our handle @suborbitaldx
